8x80 mm A4 stainless steel eye screw with 10x50 mm wall plug
  • 8x80 mm A4 stainless steel eye screw with 10x50 mm wall plug
  • 8x80 mm A4 stainless steel eye screw
  • 8x80 mm A4 stainless steel eye screw with wall plug

8x80 mm A4 stainless steel eye screw with wall plug

Ref. PIT8X80CH

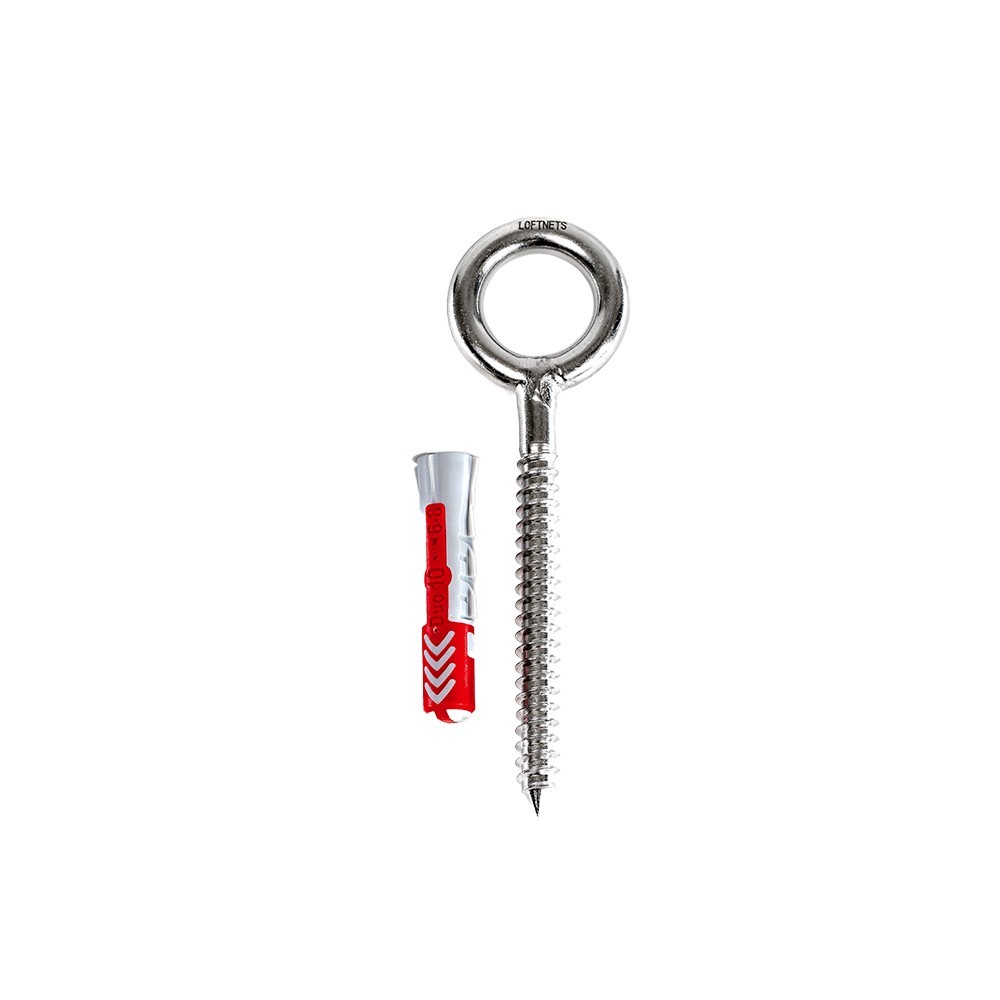

  • PACK including an 8x80 mm A4 stainless steel eye screw fastener + 10x50 mm wall plug
  • For horizontal home nets attached to a concrete structure
  • For structures thicker than 90 mm
  • Compatible with point-by-point and criss cross lacing
  • Designed for indoor or outdoor use
  • Also available with the black or white stainless steel eye screw
€2.97
In stock

  • Fast shipping 2 to 5 working days

  • Customer support At your service from Monday to Friday

  • 100% secure payment VISA, Mastercard, PayPal, Cheque, Bank transfer

Description

For home nets installed in a concrete structure, we recommend our 8x80 mm A4 stainless steel eye screw and compatible 10x50 mm wall plug pack.

This pack can be used to securely install your horizontal home net using eye screws if you do not have compatible wall plugs.

→ See the specifications below for the two products in the pack:

For thicker structures, select "Other products" in the main menu.

Installing eye screws and wall plugs:

We recommend installing eye screws with a maximum spacing of 120 mm along your metal structure to evenly spread the load and tension in your net.

You will be sent by email an installation guide once your order is received and before your net is delivered.

Eye screws cannot be used in plaster partitions or walls, or in non-structural material.

In the online configurator tool:

Our online form for your custom-made home net will automatically calculate the number of fasteners you need based on the dimensions you enter for your structure. If needed, you can adjust the quantity ordered in the form.



→ Find out more about the different types of structure and compatible fasteners in this article.

Technical details

Material
Corrosion-resistant A4 stainless steel
Available colors
Stainless steel, black stainless steel
Weight
54 g
Thread/pin diameter
8 mm
Anchor point inner diameter
21 mm
Maximum load permitted per fastener
225 kg /fastener
Threading length
68 mm
Total length
115 mm
Compatible lacing
Point-by-point, criss cross
Anchor depth
80 mm
Compatible structures
Concrete
Volume
35 mm
Installation
Indoor and outdoor
Frame width
Over 90 mm
