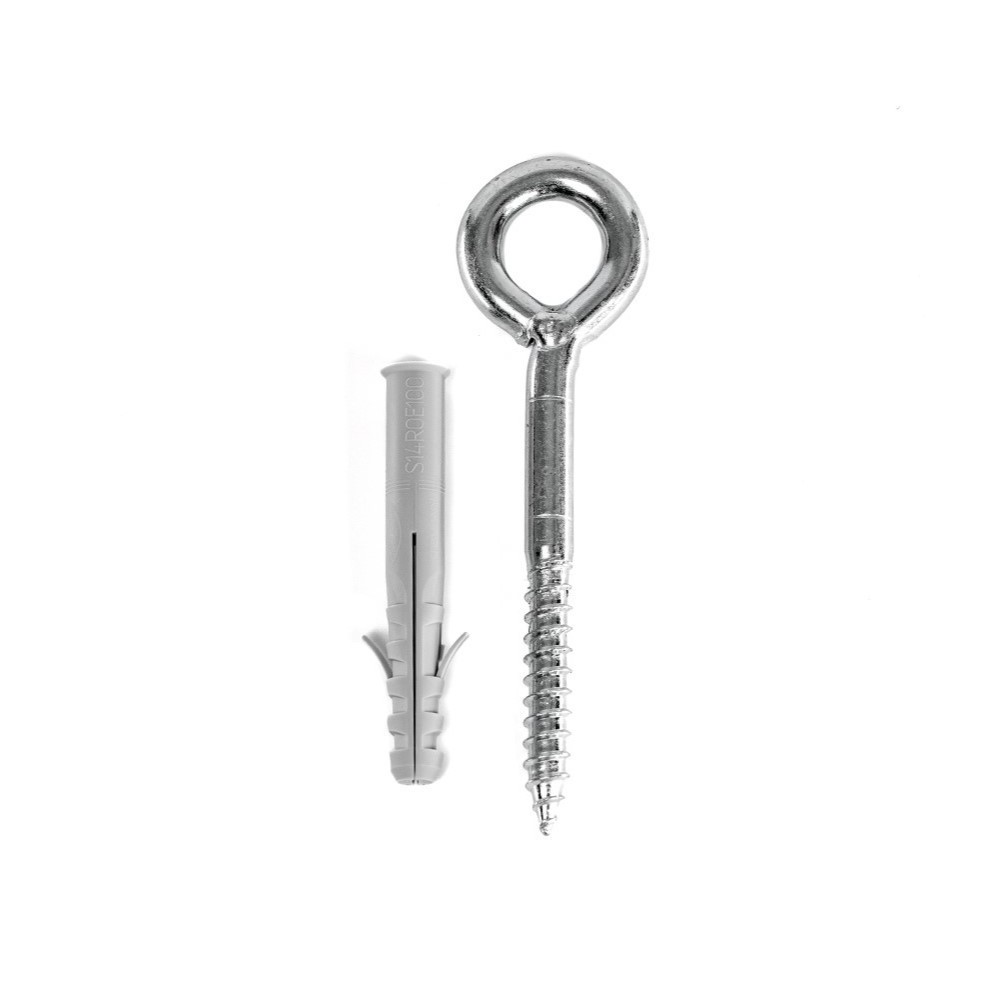

12x120 mm galvanized steel eye screw with 14x100 mm wall plug
  • 12x120 mm galvanized steel eye screw with 14x100 mm wall plug
  • 12x120 mm galvanized steel eye screw with 14x100 mm wall plug
  • 12x120 mm galvanized steel eye screw with wall plug

12x120 mm galvanized steel eye screw with wall plug

Ref. PIT12X120CH
  • PACK including a 12x120 mm galvanized steel eye screw fastener + 14x100 mm wall plug
  • For horizontal home nets attached to a concrete structure
  • For structures thicker than 130 mm
  • Compatible with point-by-point and criss cross lacing
  • Designed for indoor use
€3.51
In stock

  • Fast shipping 2 to 5 working days

  • Customer support At your service from Monday to Friday

  • 100% secure payment VISA, Mastercard, PayPal, Cheque, Bank transfer

Description

For indoor home nets installed in a concrete structure, we recommend our 12x120 mm galvanized steel eye screw and compatible 14x100 mm wall plug pack.

This pack can be used to securely install your horizontal home net using eye screws if you do not have compatible wall plugs.

→ See the specifications below for the two products in the pack:

For structures thinner than 130 mm, we recommend other eye screws. Select "Other products" in the main menu.

Installing eye screws and wall plugs:

We recommend installing eye screws with a maximum spacing of 120 mm along your metal structure to evenly spread the load and tension in your net.

You will be sent by email an installation guide once your order is received and before your net is delivered.

Eye screws cannot be used in plaster partitions or walls, or in non-structural material.

In the online configurator tool:

Our online form for your custom-made home net will automatically calculate the number of fasteners you need based on the dimensions you enter for your structure. If needed, you can adjust the quantity ordered in the form.



→ Find out more about the different types of structure and compatible fasteners in this article.

Technical details

Material
Corrosion-resistant galvanized steel
Available colors
Steel
Weight
173 g
Thread/pin diameter
12 mm
Anchor point inner diameter
25 mm
Maximum load permitted per fastener
225 kg /fastener
Threading length
70 mm
Total length
169 mm
Compatible lacing
Point-by-point, criss cross
Anchor depth
120 mm
Compatible structures
Concrete
Volume
49 mm
Installation
Indoor
Frame width
Over 130 mm
