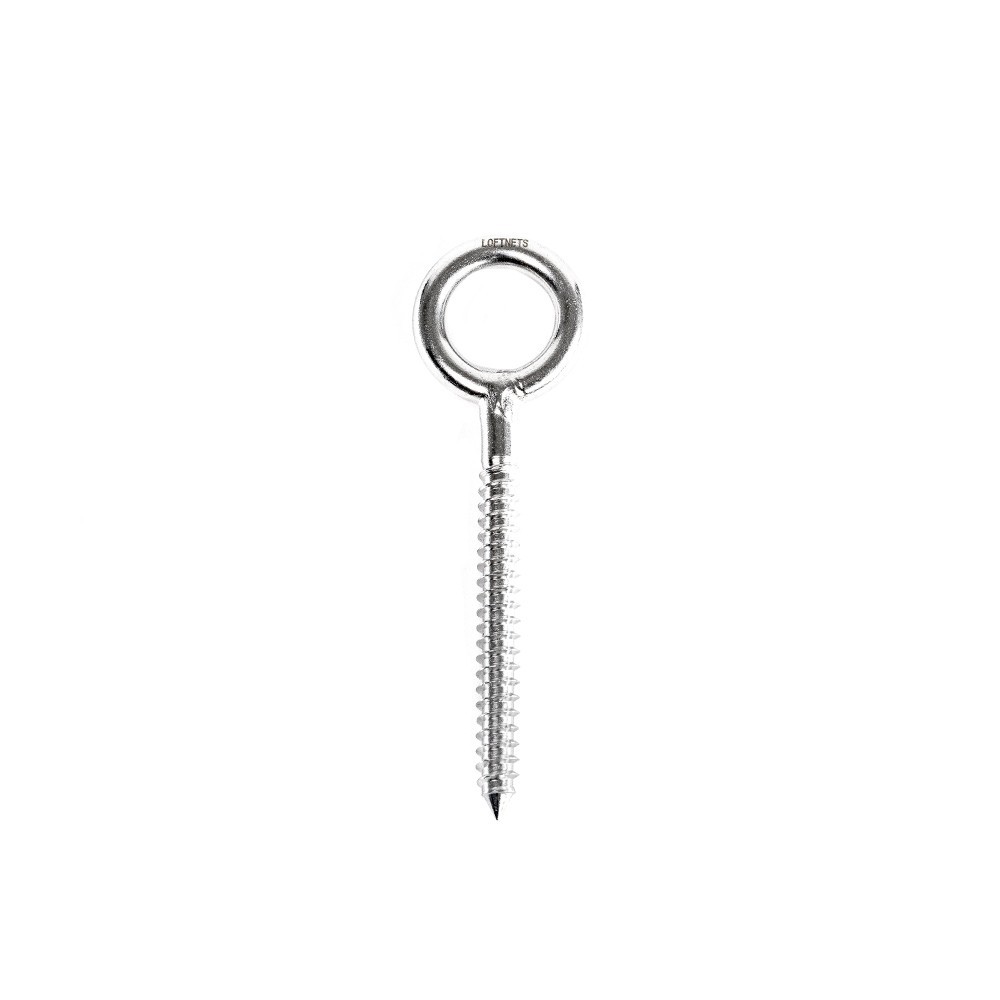

8x80 mm A4 stainless steel eye screw
  • 8x80 mm A4 stainless steel eye screw
  • 8x80 mm A4 stainless steel eye screw
  • 8x80 mm A4 stainless steel eye screw for home net
  • 8x80 mm A4 stainless steel eye screw

8x80 mm A4 stainless steel eye screw

Ref. PIT8X80
4.72/5
  • A4 stainless steel fastener for horizontal home nets attached to a wooden or concrete structure
  • For structures 90 mm or thicker
  • Compatible with point-by-point and criss cross lacing
  • Suitable for indoor and outdoor use
  • Available in stainless steel, black stainless steel and white stainless steel
Color :
€2.95
In stock

  • Fast shipping 2 to 5 working days

  • Customer support At your service from Monday to Friday

  • 100% secure payment VISA, Mastercard, PayPal, Cheque, Bank transfer

Description

For horizontal home nets installed in a concrete or wooden structure, we recommend the 8x80 mm A4 stainless steel eye screw.

Our eye screw fastener is made with high-quality A4 stainless steel, ensuring exceptional durability and optimum resistance. This ensures eye screws can be used in all weather conditions, both indoors and outdoors, all year long.

80 mm long with an 8 mm diameter rod, this fastener is the ideal support for your horizontal home net, offering secure and stable fastening. 8x80 mm eye screws can also be used in 13 mm thick insulation. Compatible with a structure at least 90 mm thick (for thicker structures, select "Other products" in the main menu).

Our eye screws feature a closed eyelet to hold the tension rope in place when the net moves. Eyelets are polished to prevent the rope fraying under tension.

Installing eye screws:

We recommend installing eye screws with a maximum spacing of 120 mm along your structure to evenly spread the load and tension in your net.

  • Wooden structures:
    Eye screws are ideal for wooden frames. First drill a pilot hole to ensure the eyelet does not split the wood.
    To make installing eye screws easier, LOFTNETS offers a drill bit compatible with all brands.

You will be sent by email an installation guide once your order is received and before your net is delivered.

Eye screws cannot be used in plaster partitions or walls, or in non-structural material.

In the online configurator tool:

Our online form for your custom-made home net will automatically calculate the number of fasteners you need based on the dimensions you enter for your structure. If needed, you can adjust the quantity ordered in the form.



→ Find out more about the different types of structure and compatible fasteners in this article.

Technical details

Material
Corrosion-resistant A4 stainless steel
Available colors
Stainless steel, black stainless steel, white stainless steel
Weight
54 g
Thread/pin diameter
8 mm
Anchor point inner diameter
21 mm
Maximum load permitted per fastener
225 kg /fastener
Threading length
68 mm
Total length
115 mm
Compatible lacing
Point-by-point, criss cross
Anchor depth
80 mm
Compatible structures
Wood and concrete (with wall plug)
Volume
35 mm
Installation
Indoor and outdoor
Frame width
Over 90 mm
