Dyneema® rope kit for missing edge on CONCRETE - Stainless steel

One solution offered by LOFTNETS is a custom-made system with Dyneema® rope to replace a structural material, where one cannot be added to the structure.

This solution should be used with caution, however, as the net will only be attached to two hanging points, meaning these could be subjected to intense forces exerted by potentially heavy weights on the net. It is important to ensure these two fastener points will be able to withstand the strain placed on them in the existing frame.

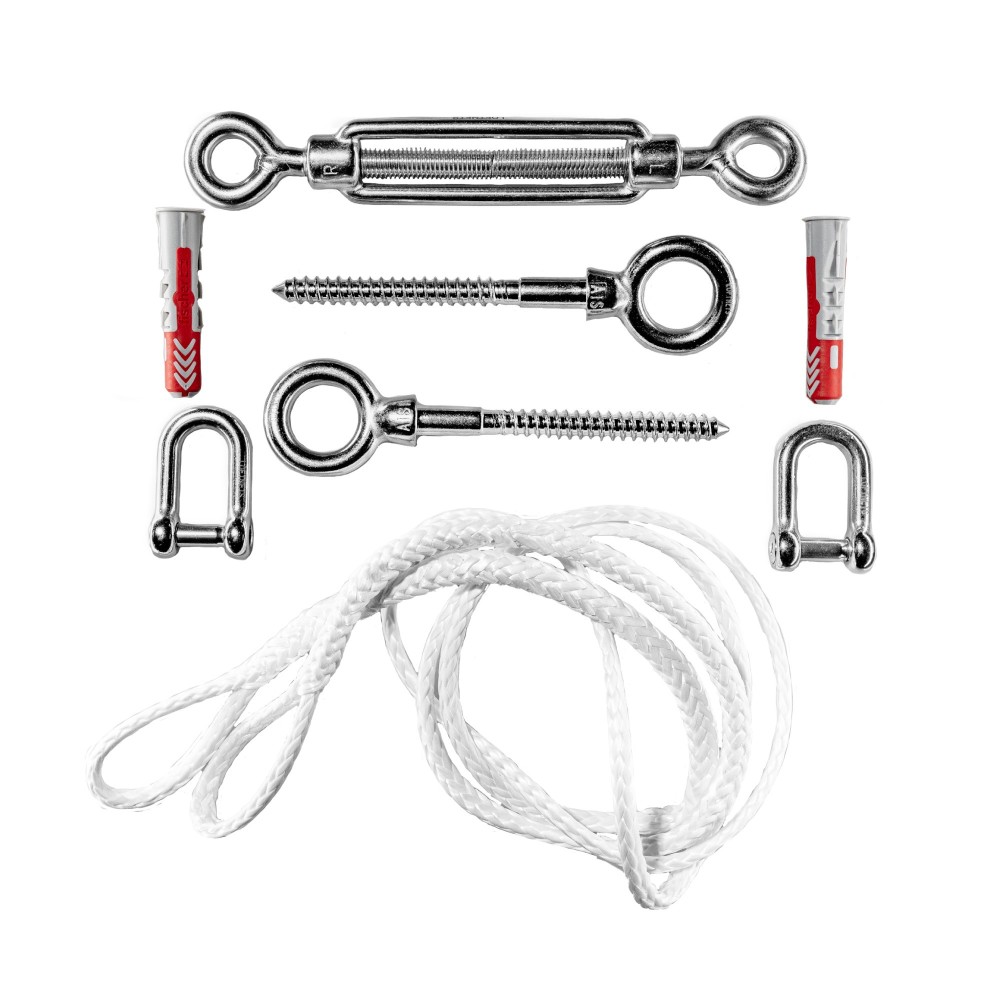

This type of system features the following elements and its length will vary depending on the space you wish to fill:

• One Dyneema® tension rope to the correct length, finished with splices produced in our workshop (white by default or grey if the mesh is 20 mm grey);
• Two A4 stainless steel shackles;
• Two 10x100 mm eye escrews + 2 wall plugs;
• One M10 stainless steel turnbuckle to create tension (today, M8 turnbuckle for horizontal nets only).

This pack is also available in black, compatible with our black meshes.

Important

This solution can only be used for a missing edge less than 5 m long, as it will create a certain amount of curvature, which will impact the net’s tension. If this edge is next to a wall, a space can be created between the cable and the wall, where the net will sag the most.

Make sure the net is retensioned regularly using the turnbuckle to ensure this edge remains taut.

This system is designed for a safe working load of 500 kg.

Steps to follow to order

Read in our Missing edges article the steps to follow to order the kit.
