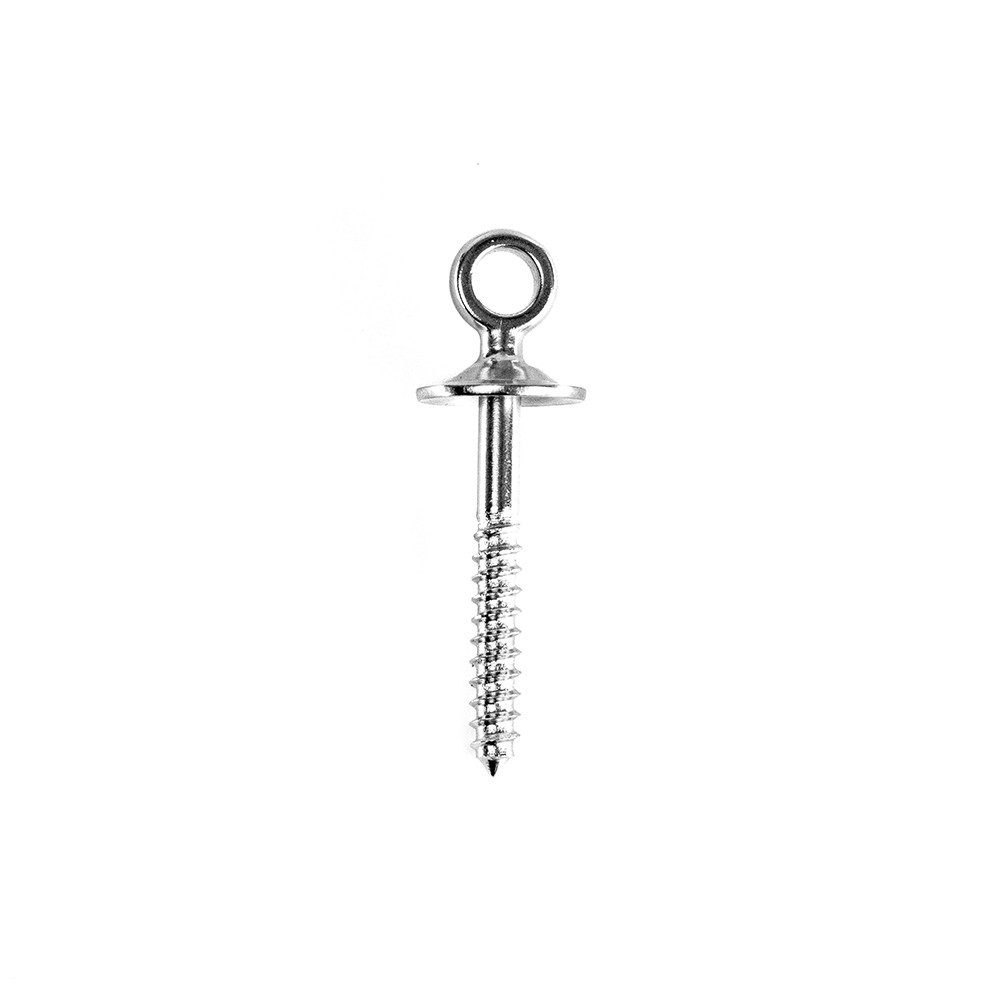

8x25 mm A4 stainless steel eye screw
  • 8x25 mm A4 stainless steel eye screw

8x25 mm A4 stainless steel eye screw

Ref. PIT8X25
  • 8x25 mm A4 stainless steel eye screw fastener
  • For vertical nets attached to a wooden structure
  • Compatible with simple or triangular lacing
  • Suitable for indoor or outdoor use
€1.95
In stock

  • Fast shipping 2 to 5 working days

  • Customer support At your service from Monday to Friday

  • 100% secure payment VISA, Mastercard, PayPal, Cheque, Bank transfer

Description

For vertical home nets installed in a wooden structure, we recommend our 8x25 mm A4 stainless steel eye screw.

Our eye screw fastener is made with high-quality A4 stainless steel, ensuring exceptional durability and optimum resistance. This ensures eye screws can be used in all weather conditions, both indoors and outdoors, all year long.

25 mm long with an 8 mm diameter rod, this fastener is the ideal support for your vertical home net, offering secure and stable fastening. Compatible with a structure at least 30 mm thick (for structures thicker than 60 mm, we recommend the eye plate fastener).

Our eye screws feature a closed eyelet to hold the tension rope (caution: this eye screw is not compatible with Ø 10 mm rope) in place when the net moves. Eyelets are polished to prevent the rope fraying under tension.

Installing eye screws:

We recommend installing eye screws with a maximum spacing of 120 mm along your structure to evenly spread the load and tension in your net.

Eye screws are ideal for wooden frames. First drill a pilot hole to ensure the eyelet does not split the wood. To make installing eye screws easier, LOFTNETS offers a drill bit compatible with all brands.

You will be sent by email an installation guide once your order is received and before your net is delivered.

Eye screws cannot be used in plaster partitions or walls, or in non-structural material.

In the online configurator tool:

Our online form for your custom-made home net will automatically calculate the number of fasteners you need based on the dimensions you enter for your structure. If needed, you can adjust the quantity ordered in the form.



→ Find out more about the different types of structure and compatible fasteners in this article.

Technical details

Material
Corrosion-resistant A4 stainless steel
Weight
32 g
Anchor point inner diameter
11 mm
Maximum load permitted per fastener
150 kg /fastener
Threading length
25 mm
Total length
53 mm
Anchor depth
25 mm
Compatible structures
Wood
Volume
28 mm
Installation
Indoor and outdoor
Frame width
Over 30 mm
